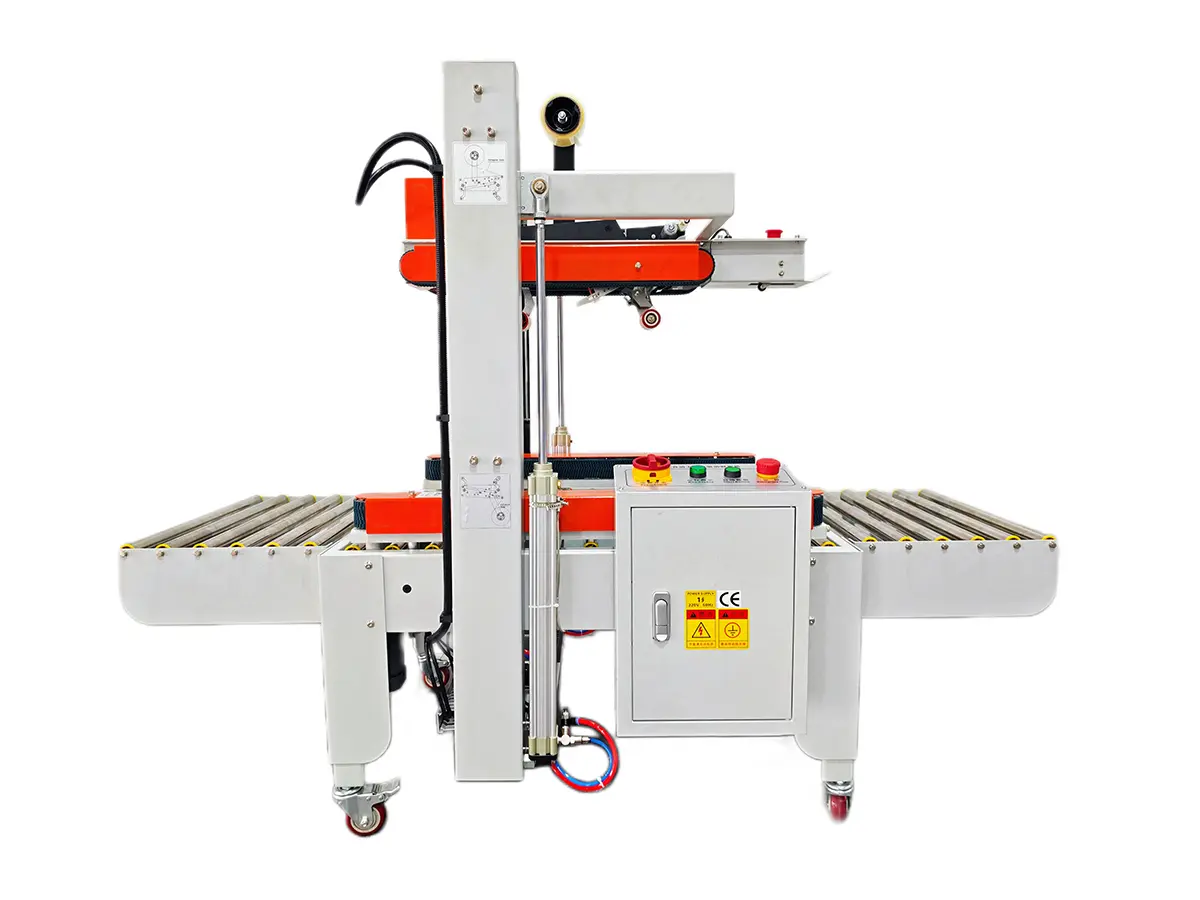

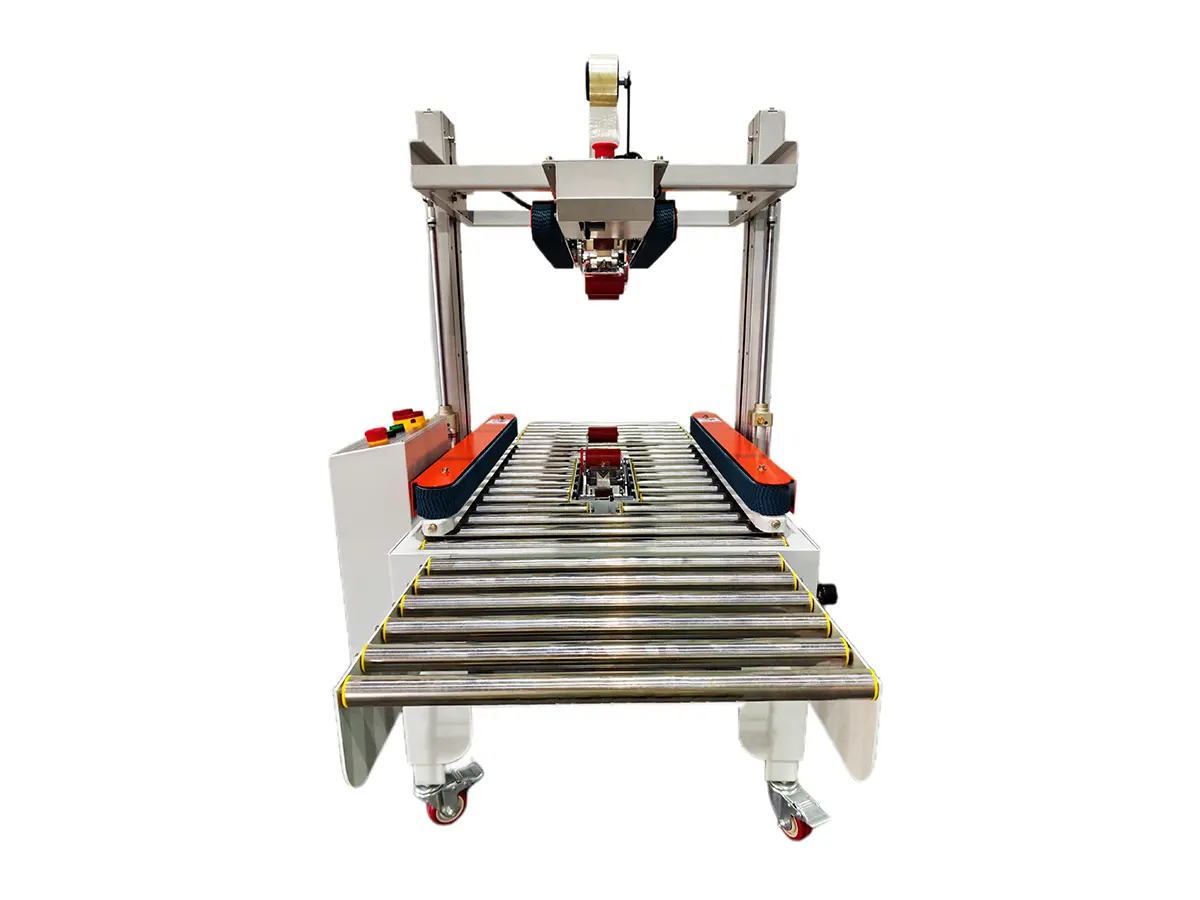

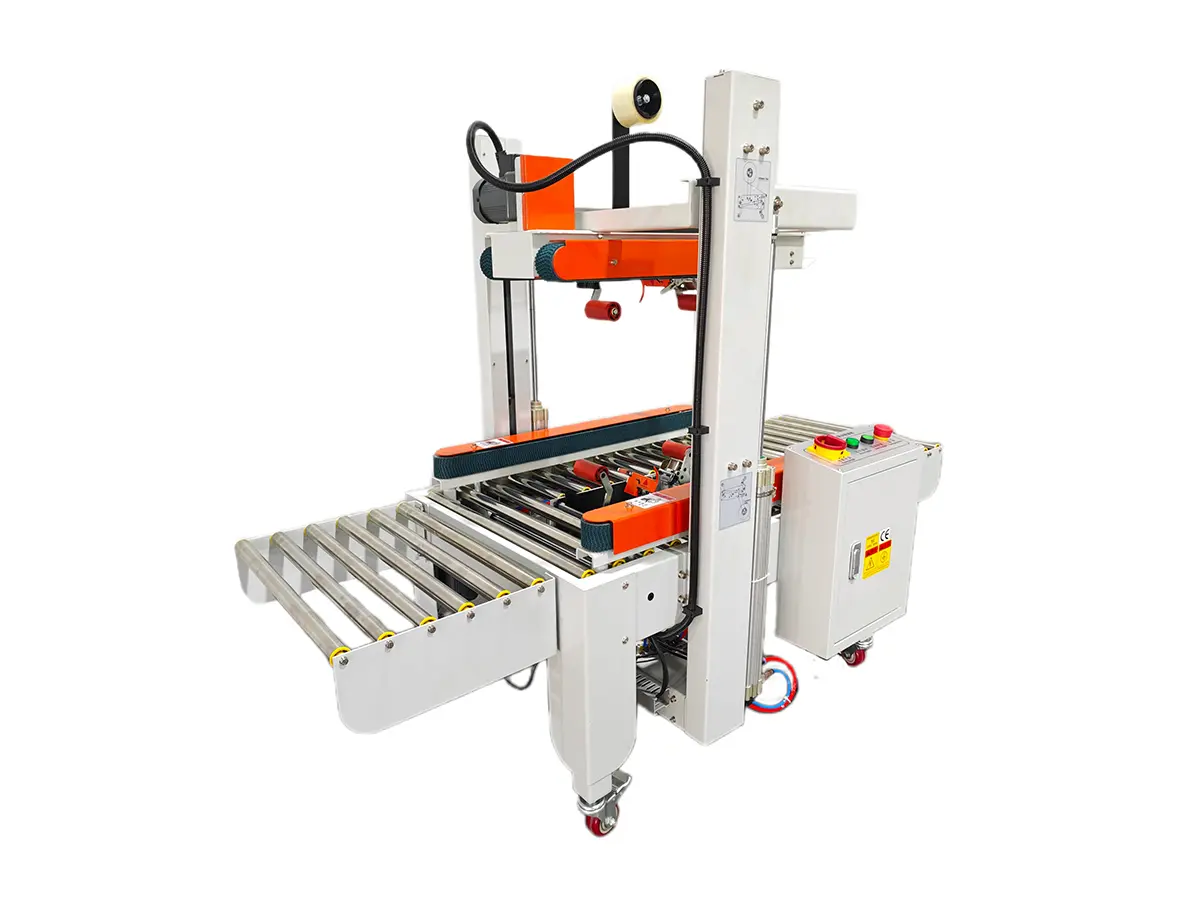

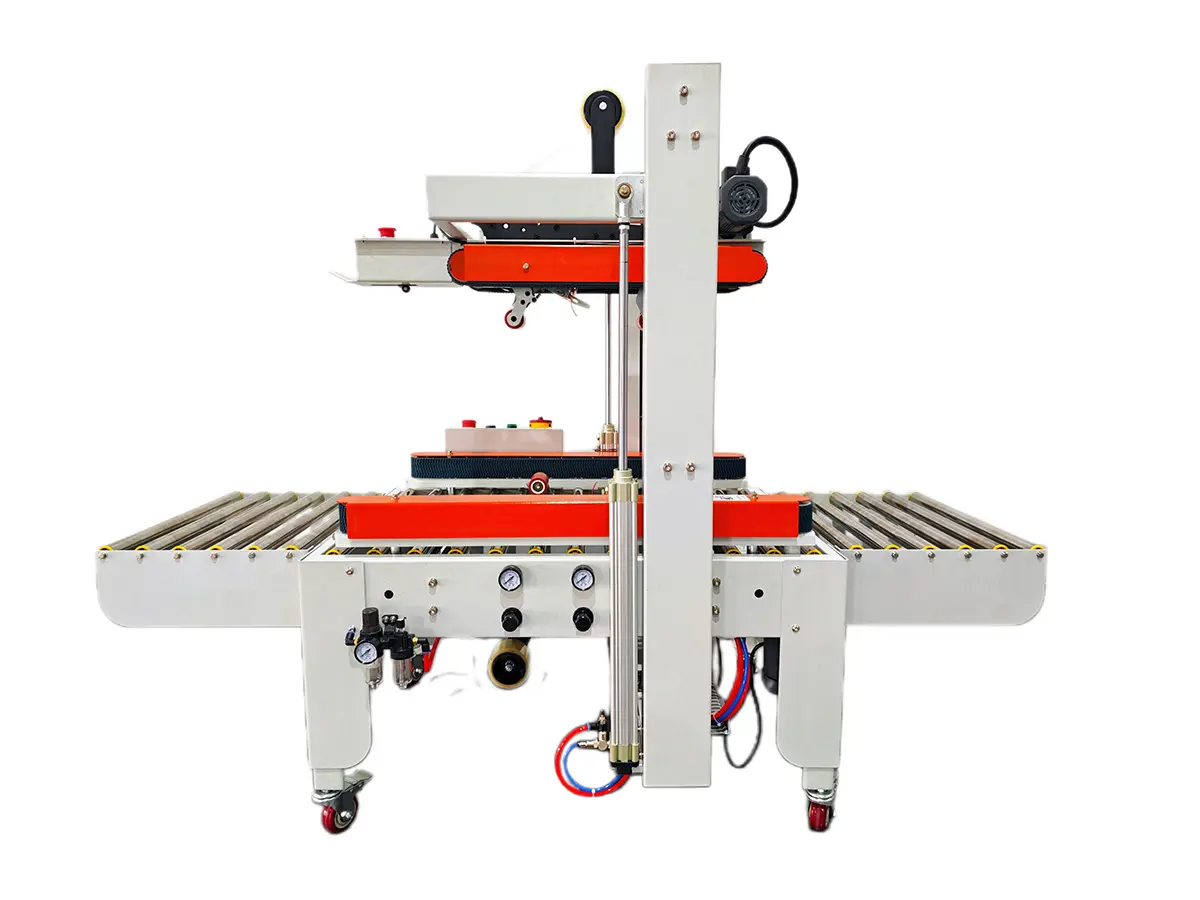

Low Price FJ123 Automatic Top-Side Drive Belt Carton Sealer Manufacturers, Distributors

The Automatic Top-Side Drive Belt Carton Sealer uses separate top, left and right motors for three-direction carton clamping and steady conveying. It auto-adjusts dimensions to skip manual recalibration for frequent carton size switches. Equipped with a sturdy thick frame and upgraded tape dispenser, it suits diverse cartons with long service life and full after-sales service. The tidy control panel has an emergency stop button and independent power switches. Air cylinders serve as key automatic parts for the three-side carton sealer. Powered by air pressure, they auto-adjust the top and side belts to fit various carton sizes without manual tuning.

Product Description

Related products

FJ122 Fully Automatic Side Drive Belt Carton Sealer
01

FJ122 Fully Automatic Side Drive Belt Carton Sealer

FJ213 Top-Side Drive Belt Carton Sealer
02

FJ213 Top-Side Drive Belt Carton Sealer

FJ121 Fully Automatic Top-Bottom Drive Belt Carton Sealer
03

FJ121 Fully Automatic Top-Bottom Drive Belt Carton Sealer

FJ126 Automatic Edge Sealing Machine
04

FJ126 Automatic Edge Sealing Machine

FJ119 Side Taping Carton Sealer
05

FJ119 Side Taping Carton Sealer

FJ111 Top-Bottom Drive Belt Carton Sealer
06

FJ111 Top-Bottom Drive Belt Carton Sealer

Frequently Asked Questions

What is a carton sealer machine and how does it work?

A carton sealer is an automated packaging machine designed to apply adhesive tape to the top and bottom seams of cardboard boxes. It streamlines the packaging process by automatically folding top flaps and applying tape securely as the box passes through the drive belts.

What is the difference between side drive and top-bottom drive carton sealers?

Side drive carton sealers use drive belts on the left and right sides to move the boxes, making them ideal for lightweight, narrow, or unstable cartons. Top-bottom drive carton sealers pull cartons using belts on the top and bottom, which provides better support for tall, wide, or heavy cartons.

Can these machines handle different carton sizes?

Yes, standard models can be manually adjusted to accommodate different carton heights and widths in a matter of seconds. Fully automatic models are also available to auto-adjust for randomly sized boxes coming down the same packaging line.

What are the advantages of using an automatic edge sealing machine?

An automatic edge sealing machine applies tape to the side edges and corners of the box, typically creating an H-shape seal. This provides superior protection against dust, moisture, and pilferage, making it ideal for shipping high-value or sensitive products.

Are these carton sealers compatible with standard adhesive tapes?

Absolutely. These machines are engineered to work with standard packaging tapes such as BOPP, PVC, and kraft paper tapes in various standard widths, usually ranging from 2 inches (48mm) to 3 inches (75mm).
